Lenkeng HDMI Video Wall Controller 1x9 LKV109VW-V2.0

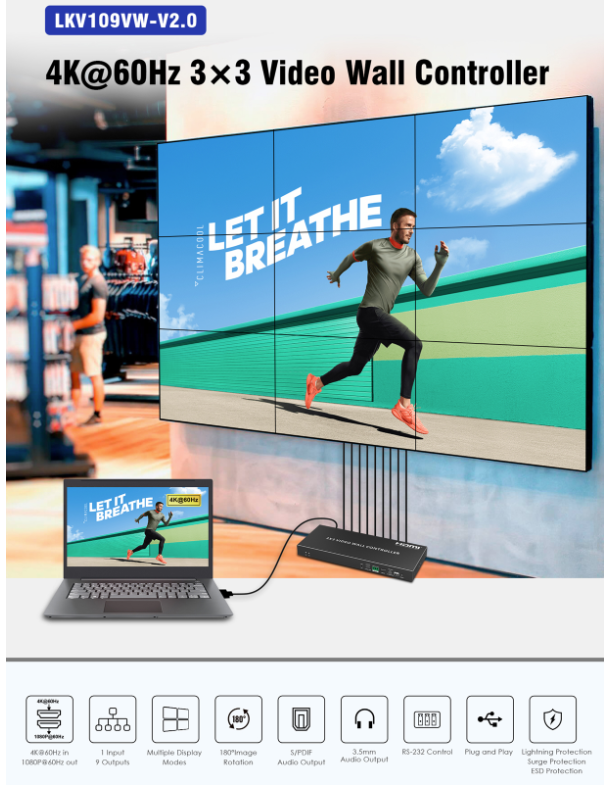

The Lenkeng LKV109VW-V2.0 is a professional 1-in-9-out HDMI video wall controller designed to split a single 4K video source across up to nine displays in a 3x3 grid or other configurations.

• High Resolution Support: Accepts input resolutions up to 4K @ 60Hz (4096x2160) and delivers 1080p @ 60Hz output to each connected display.

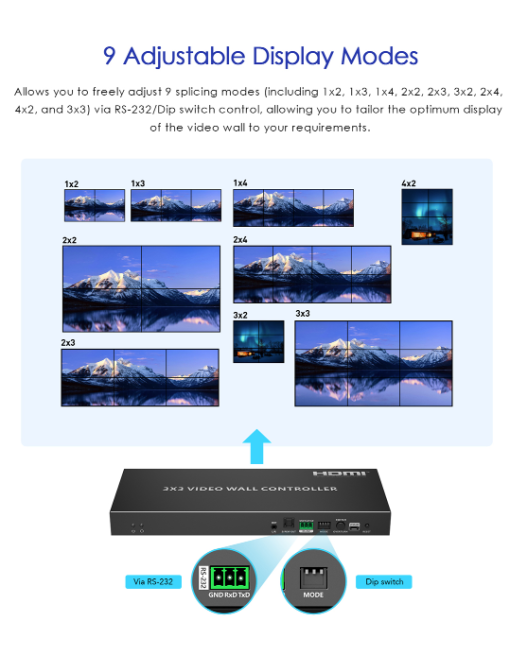

• Versatile Splicing Modes: Supports 13 different display layouts, including 1x1, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, 2x2, 2x3, 3x2, 2x4, 4x2, and 3x3.

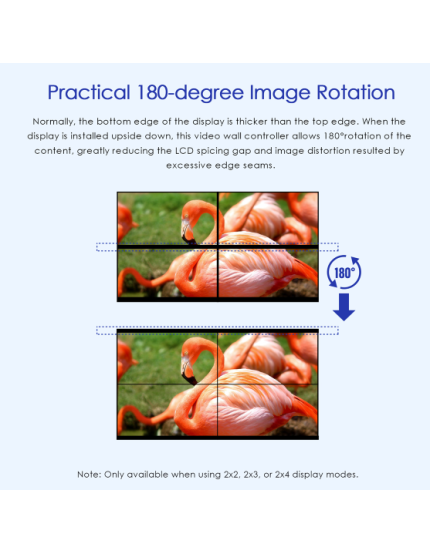

• 180° Image Rotation: Allows you to rotate images 180 degrees specifically in 2x2, 2x3, and 2x4 modes, which is helpful when mounting upper screens upside down to minimize bezel gaps.
• Audio Extraction: Features both 3.5mm stereo and S/PDIF digital audio outputs to connect external sound systems.
• Multiple Control Options: Settings can be managed via a DIP switch on the unit or remotely through RS-232 commands
