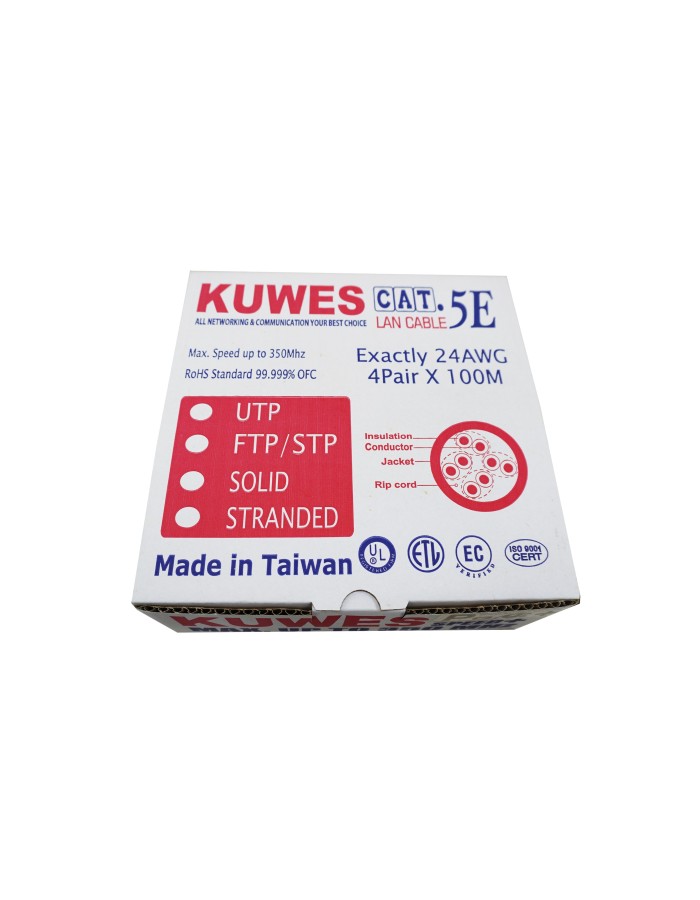

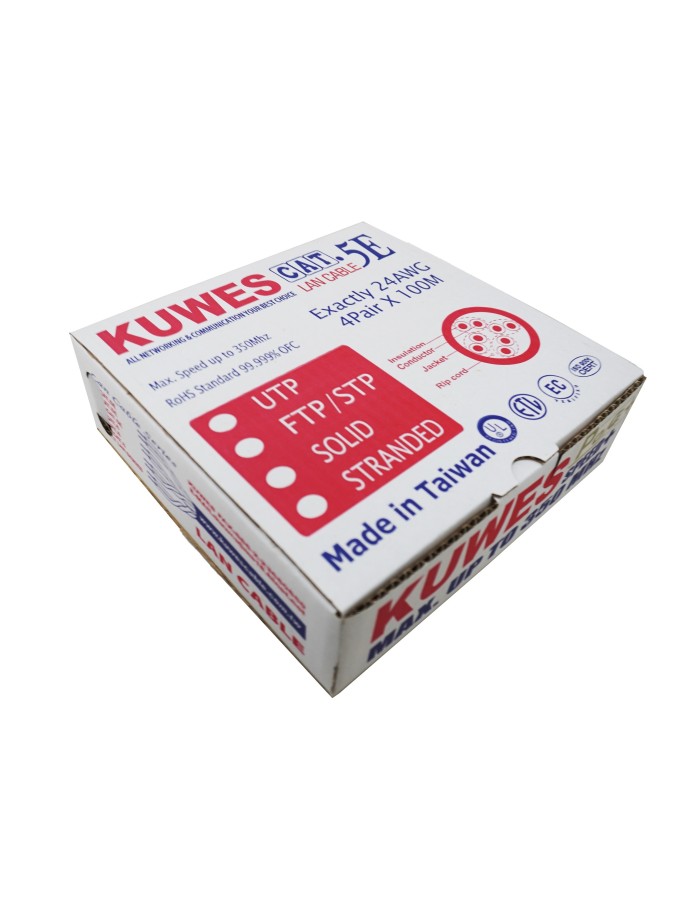

Kuwes CAT5E UTP Pure Copper Outdoor 100m Black

Conductor: Solid Bare copper (1 x AWG24)

Insulation : HDPE

• Min. Avg. Thickness: 0.178 mm;
• Min. Thickness: 0.153 mm

Color Code:

• Pair 1: Blue & White/Blue;
• Pair 2: Orange & White/Orange
• Pair 3: Green & White/Green;
• Pair 4: Brown & White/Brown

   Jacket:

• LDPE
• Min. Avg. Thickness: 0.585 mm;
• Min. Thickness: 0.458 mm
• Approximate O.D.: 5.2 mm +/- 0.3mm

Electric Requirements: (Cable length: 100M)

• Characteristic Impedance(Zo): 85～115Ω (1～100 MHz)
• Other Requirements: (dB/100M)
•  DC. Resistance Capacitance Unbalance: 5％
•  Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
•  Conductor Resistance: 9.38Ω/ 100M  20℃ Max
•  Mutual Capacitance: 5.6 nF/m Max
•  Spark Test: 2.5KV
