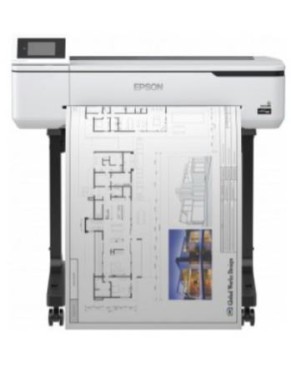

EPSON PLOTTER 24'' SURECOLOR SC-T3100 A1, WITH STAND, 34 SEC/PAGE ON A1, 2400X1200 DPI, 1 GB RAM, CUTTER, TOUCH SCREEN, 4 INKS, USB, WIFI, LAN, WIFI DIRECT, 2YW

SureColor SC-T3100 - Wireless Printer (with stand)

Large format printer - technical

Entry-level large format printer allows users to print technical and CAD drawings in great detail up to 24".

·        Smallest footprint in range

·        Wireless printing

·        Up to 24" (610mm / A1)

·        CMYK Pignment Ink

With the SC-T3100 it’s all about the detail, throughput speed and size of the output (up to 24”). Designed for those who need a professional-level, technical printer that boasts a low total cost of ownership. Whether you’re an architect, student, engineer, or work in an advertising agency, the need to print accurately, precisely, reliably and in great detail is essential. Stand included.

Tech Specs

Technology

Printing Method

PrecisionCore™ Print Head

Ink Technology

Ultrachrome® XD aqueous pigment ink

Print

Colours

Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment]

Colours Capacity

Black [50ml, 80ml], Cyan [26ml, 50ml], Yellow [26ml, 50ml], Magenta [26ml, 50ml]

Minimum Droplet Size

4 pl, With Variable-Sized Droplet Technology

Minimum line width

0, 07 mm

Line accuracy

+/- 0,1

Print Speeds (CAD A1 page size)

Quick 34 ppm

Print from

PC, MAC, Direct USB, Mobile Device (WiFi Direct)

Nozzle Configuration

800 Nozzles Black, 800 Nozzles per Color

Printing Resolution

2.400 x 1.200 DPI

Paper / Media Handling

Paper Formats

A1 (59.4x84.1cm), A2 (42.0x59.4cm), A2+, A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), B1 (72.8x102.8 cm), B2 (51.4x72.8 cm), B3 (36.4cmx51.4 cm), B4 (25.7x36.4 cm), B5 (17.6x25.7 cm), 17 " (43.2 cm) Roll, 24 " (61.0 cm) Roll

Print Margins Sheet Media

Mode 1: 3 mm (top), 3 mm (right), 3 mm (bottom), 3 mm (left)

Print Margins Roll Media

Mode 1: 3 mm (top), 3 mm (right), 3 mm (bottom), 3 mm (left)

Thickness

Single Sheet 0,3 mm, Roll 0,2 mm

Compatible Paper Thickness

0,05 mm - 0,27 mm

Automatic Document Feed

Standard (built-in)

Roll Capacity - Diameter

Roll 1: 110 mm

General

Power consumption

28 Watt, 8 Watt (standby), 0,2 Watt (Power off)

Supply Voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

970‎ x 696 x 913 mm (Width x Depth x Height)

Product weight

38 kg

Sound Power

Operation: 7,5 B (A)

Mobile and Cloud printing services

Apple AirPrint

Noise Level

Operation: 49 dB (A) - Standby: 32 dB (A)

What's in the box

AC cable, Driver and utilities (CD), Individual Ink Cartridges, Maintenance Tank, Paper stacker, Printer Stand with stacking print basket, Setup guide, SureColor T-Series Printer, User manual (CD), Warranty document

Optional extras

Document carrier sheet A0, Cover Plus warranty extensions, Roll feed spindle 24" LFP

Other Features

Memory

Printer: 1 GB

Compatible Operating Systems

Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP

Emulations

ESC/P-R, HP-GL2, RTL

Features

Touchscreen

Interfaces

USB 3.0, Gigabit ethernet interface, Wireless LAN IEEE 802.11b/g/n, Wi-Fi Direct

Optional Software & Solutions

Epson Print Automate, Dinax Mirage, Epson Cloud Solution PORT

Security

TLS, SSL, SNMP, IPSec, IPv6, IEEE802

Media Handling

Auto Sheet Feeder, Auto cutter, Roll Paper

Scanner not included with delivery

Other

Warranty

24 months On-site service

LCD and Memory Cards

Panel

Type: Color, Touchscreen, Diagonal: 10,9 cm

Scan

Supported models

Epson WorkForce DS-6500, Epson WorkForce DS-60000
