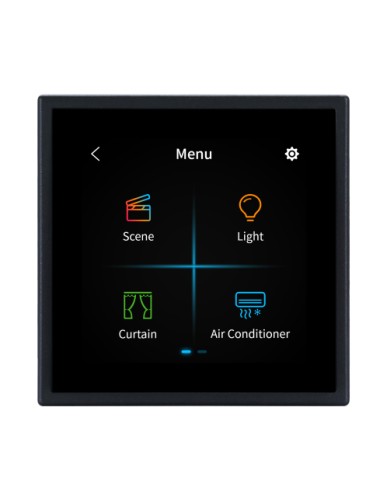

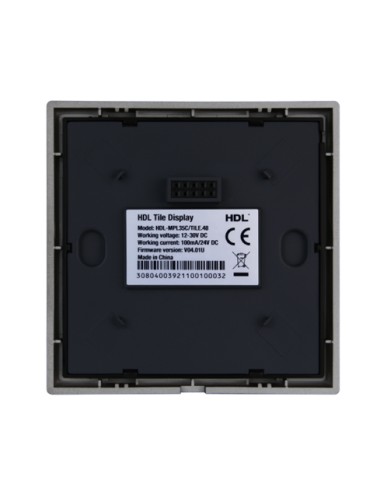

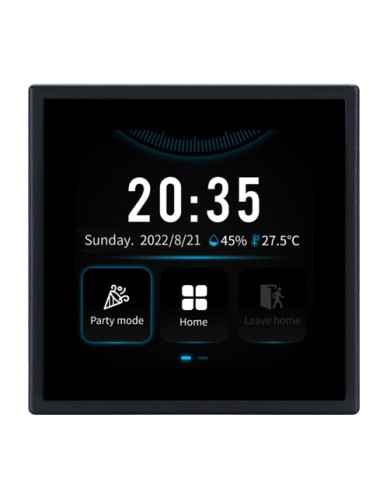

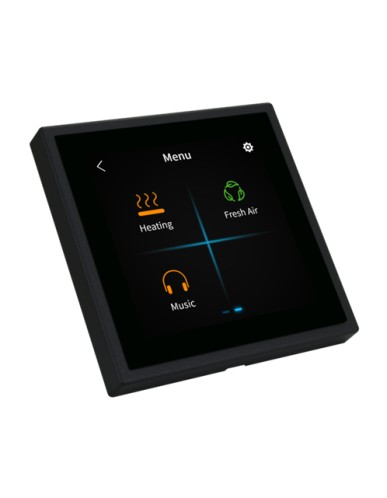

HDL Tile Display 3.5'' LCD Touch Screen with Built In Temperature, Humidity & Proximity Sensor

• KNX Tile Display is a multi-functional control panel for home automation
• With 3.5-inch LCD screen and full screen touch control, it is convenient for the users to control lighting, curtain, scene, AC/FCU, floor heating, music and fresh air in an intuitive way
• Built-in temperature and humidity sensor
• Built-in proximity sensor, when the panel detects human body, the LCD screen will wake up.
• Adjustable LCD backlight
• LCD screen wakes up automatically.
• Screen lock setting
• 5 scene shortcut buttons and 1 main menu button available in main interface
• Time and environment status display setting
• Dedicated pages for lighting, curtain, scene, AC/FCU, floor heating, music and fresh air control
• A total of 20 control keys can be set on the lighting page. The control types are: Switch, dimmer, RGB and CCT.
• Curtain control: up to 8 curtains supported. Supports opening/closing, stopping, percentage adjustment
• Scene control: up to 20 scenes supported
• AC/FCU control: Supports switching, temperature adjustment, fan speed adjustment, mode switching of up to 3 AC/FCU
• Floor heating control: Supports switching, temperature adjustment, mode switching of up to 8 floor heating control, Floor heating modes: Normal, Day, Night, Away, Timer.
• Music play: 1 music player supported, list not supported (source switching not supported)
• Fresh air control: Supports switching, fan speed adjustment, mode switching of 1 fresh air control

Requires M/PTCI2P.1 Power Supply
