      HDL Panel SOURCE 7 Touch Screen Black

      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      HDL Panel SOURCE 7 Touch Screen Black
      • Output channel : KNX interface: 2CH, 5A/CH Resistive load: ≤660W/CH Capacitive load: ≤200W/CH
      • Communication protocol: HDL LINK, WiFi, RJ45
      • Master chip: PX30
      • Storage capacity: 2+8GB
      • Operating frenquency:  2.4GHz, 5GHz
      • Operating system : Android
      • Ethernet interface: RJ45
      • TF card : Max 64GB
      • Touch screen: 7-inch capacitive touch screen, available for multi-touch; Resolution: 1280*720

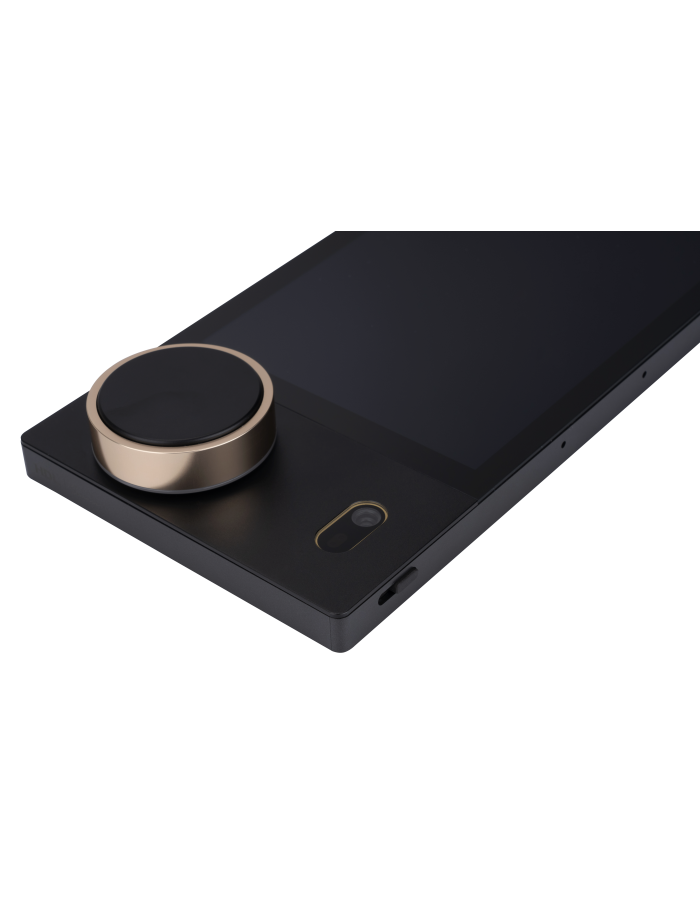

      • Knob: Users can turn the knob to adjust the light brightness, curtain open/close percentage, media volume, temperature, or fan speed. Knob-operated control: turn clockwise/counter-clockwise, short press, long press. The knob lighting is with RGB lamp beads.
      • Camera: 5-megapixel camera; manual-operated on/off
      • Microphone: Four microphones are located at the top of the touch screen. The voice detecting range is within 3m around the touch screen.
      • Speaker: Dual speaker, 0.8W*2
      • Proximity sensor : Once the sensor detects near human motion, touch screen automatically wakes up. The detecting range is within 15cm around the touch screen.
      • Temperature & humidity sensor: Real-time monitor environment status
      • Knob-operated control, including turn clockwise/counter-clockwise, short press, long press
      • Temperature & humidity monitoring: built-in temperature & humidity sensor for monitoring real-time environment status.
      • Proximity detection: Built-in proximity sensor for detecting human motion. Once the sensor detects near human motion, the touch screen automatically wakes up.

      Requires Power Interface MPWS2R1ETH-KT.18 (not included)

      https://www.mstronics.com/p/22235/hdl-mpws2r1eth-kt-18-source-knx-interface.html

      €582.99
      Ex Tax: €489.91
