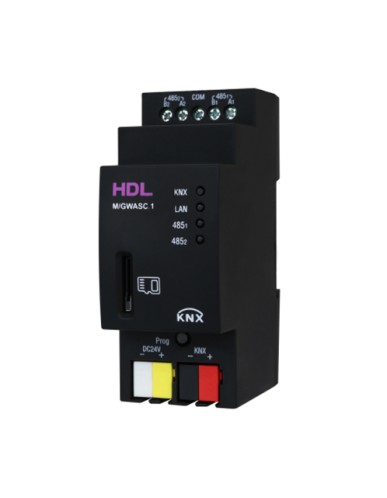

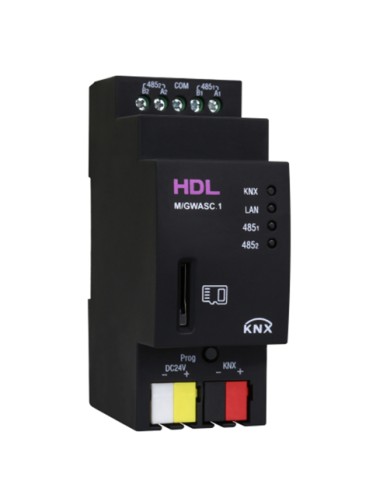

HDL Link KNX Gateway Server M/GWASC.1

KNX Gateway is a protocol conversion gateway based on KNX Bus communication, and enables data exchange with devices of different protocols.

Its main functions include:

• Device list: control feedback, update status
• Supports scene function: add scenes, *area capture scenes, *movie (dynamic) scenes
• Automation function
• Security function
• Clock: local clock, network clock, automatic synchronization of network time
• System detection, device status reporting: device online status, offline status, device abnormal information
• Drive management of third-party products
• Factory reset function
• Data backup and data recovery function

Protocol and software support:

• Internal communication protocols include: https, tcp, udp, etc., and standard mqtt access to third-party servers also supported.
• Support intranet communication, remote access
• Support backup upload and download of APP, Cloud, *SD card, debugging software
• Auxiliary support: KNX Assistance Software, KNX ETS, OnPro , Cloud server
• Online upgrade: upgrade gateway online via KNX Assistance Software, or upgrade other Bus devices through this gateway.
• Note: The functions with * are not yet open for use.
