Artsound Arcus-EDS KNX Interface for Smart Audio products

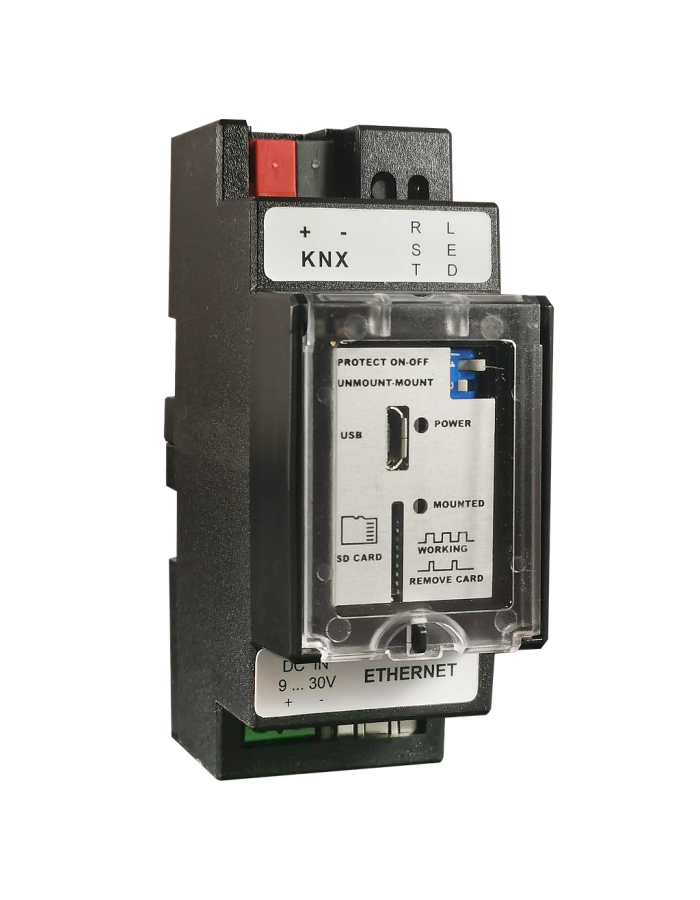

The KNX-GW-IP-2TE is used for coupling the ETS ( PC software tool ) via Ethernet to the KNX bus for addressing and programming KNX components.

Using the KNX-group monitor allows for the monitoring and transfer of telegrams via the KNX-bus in real time. The site of the KNX-group monitor is subdivided into a configuration and a telegram section.

The KNX-IP-gateway is able to save telegrams. The KNX-telegram logger lists the saved telegrams. It is possible to set a timeframe as well as a group address filter.

To visualize the data, up to three different group addresses can be displayed in one graph.

The gateway can link html-sites with KNX-files and visualize them in every browser, provided that websockets are supported.
